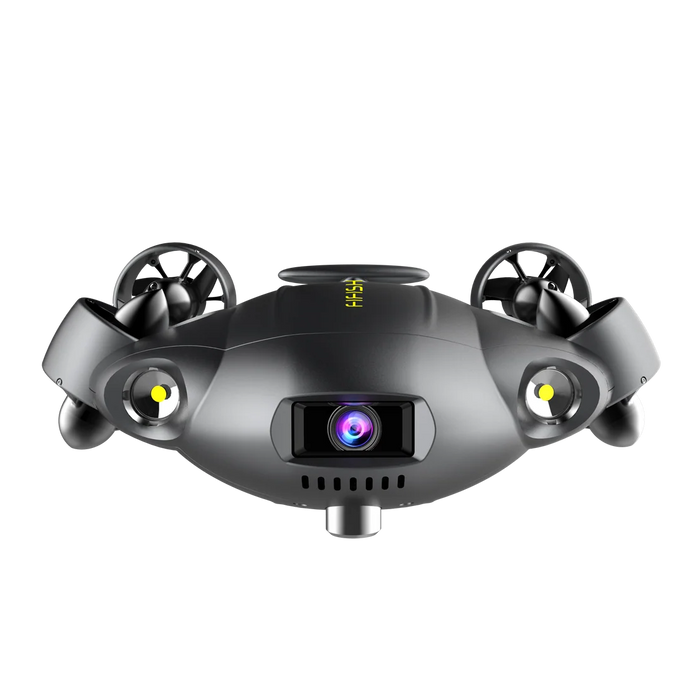

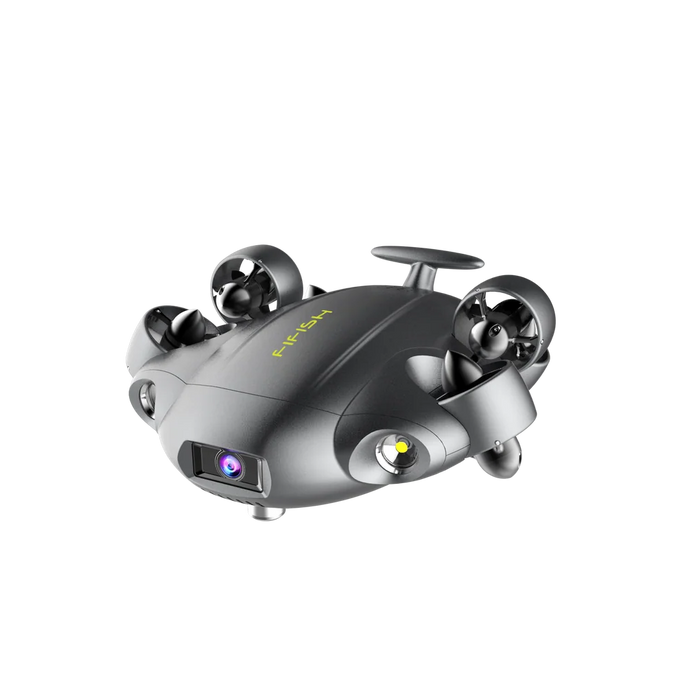

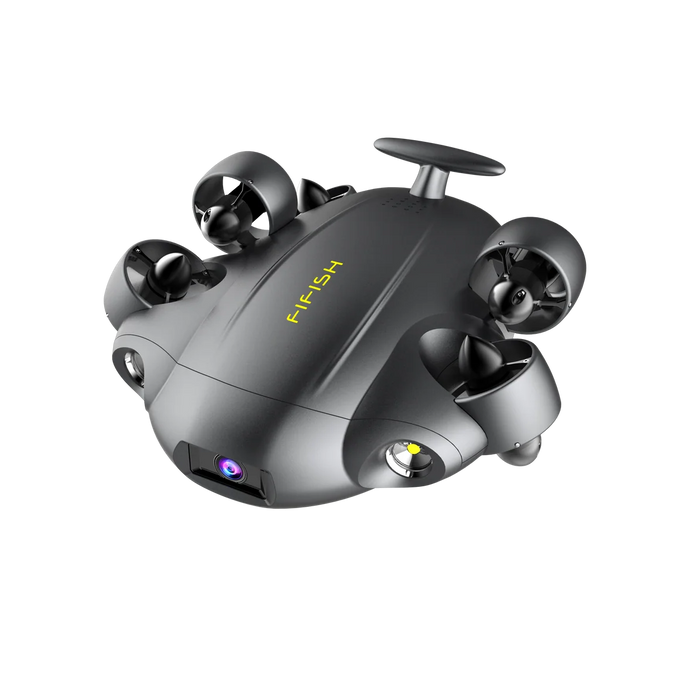

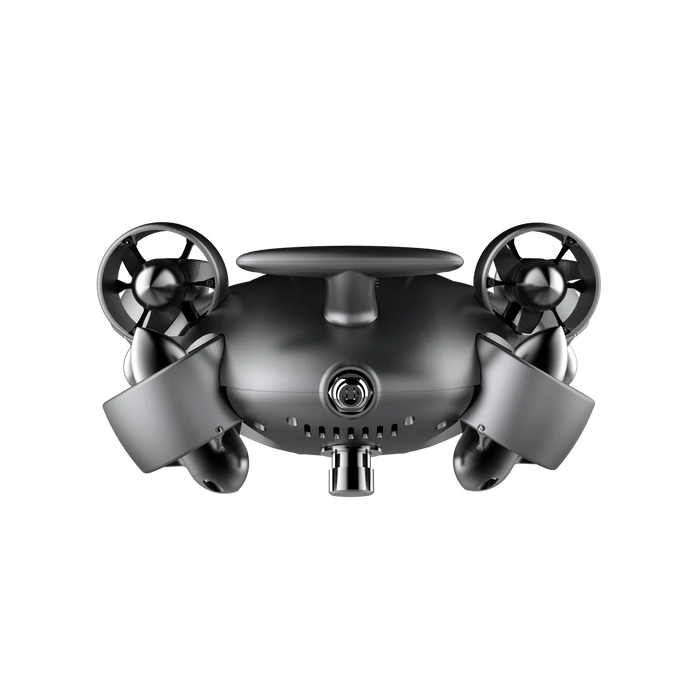

FIFISH V6 Expert

Name: FIFISH V6 Expert
Brand: FIFISH
Availability: OutOfStock

FIFISH V6 EXPERT is a professional class underwater robot designed to elevate your underwater missions and operations. Equipped with advanced capabilities and add-on capabilities, V6 EXPERT ensures enhanced work performance and versatility. Enhance your missions with a shore-based power system, ensuring peak diving performance and substantially longer operating durations.

Product variants

Got questions how Aero can help your business propel to greater heights? Explore options and send your inquiry today. Inquire Now

Technical Specifications:

Category	Technical Detail	Specification
ROV	Dimensions	383 mm (L) × 331 mm (W) × 143 mm (H)
	Weight	4.6 kg
	Depth Rating	100 m
	Payload	5 kg
	Speed	3 knots (1.5 m/s)
	Degrees of Freedom	6 DOF
	Propellers	Left & right, up & down, forward & backward, 360° yaw, pitch, roll
	Operating Temperature	−10 °C to 60 °C
	Operating Time	1–4 hours (dependent on work environment)
	Power Capacity	156 Wh
	Charging	Quick charge: 90% in 1 hour (actual speed may vary)
Camera	Sensor	1/2.3” CMOS
	Pixels	12 MP
	Aperture	f/2.5
	Field of View	Above water: 166° / Underwater: 96°
	Focus Range	0.3 m to +∞
	Shutter Speed	5–1/5000 second
	Burst Shooting	1 / 3 / 5 / 10 frames
	ISO	100–3200 (Auto/Manual)
	White Balance	2500K–7500K (Auto/Manual, seawater & freshwater)
	Exposure Compensation	−3.0 EV to +3.0 EV (Auto/Manual)
	Photo Resolution	4:3 – 4000 × 300016:9 – 3840 × 2160
	Photo Format	JPEG, DNG
	Video Resolution	4K UHD: 25/30 fps1080p FHD: 25/30/50/60/100/120 fps720p HD: 25/30/50/60/100/120/200/240 fps
	Video Encode	H.264
	Video Format	MP4
	Stabilization	Electronic Image Stabilization (EIS)
	Color System	NTSC & PAL
	Storage	External microSD (128 GB standard, up to 256 GB supported)
	AI Vision	Vision Lock, Diver Tracking
Sensors	Gyroscope	±0.1° (Posture Lock)
	Accelerometer	±0.1° (0.1° pitch/roll, movement in any direction)
	Magnetometer	±1° (Direction sensing)
	Depth Sensor	±1 cm (Depth Lock)
	Temperature Sensor	±1° (Temperature monitoring)
Lighting	Brightness	3000 lumen LED × 2
	CCT	5500 K
	Beam Angle	120°
	Brightness Levels	3
Charger	ROV Input	100–240 V, 50/60 Hz, 3A max
	ROV Output	12.6 V ⎓ 10 A
	Controller Input	100–240 V, 50/60 Hz, 0.5A max
	Controller Output	5 V ⎓ 3 A
Port Interface	Quantity	1 port
	Material	Stainless Steel 316
	Interface	9–12 V @ 5 A, Ethernet, UART
	Adjustable Power	Adaptive voltage for external add-on accessories
	Secure Plug	Self-diagnostic tests & leakage prevention
Tether & Spool	Cable Length	100 m / 200 m
	Tensile Strength	100 kgf
	Cable Diameter	4.6 mm
	Buoyancy	Neutral buoyancy
