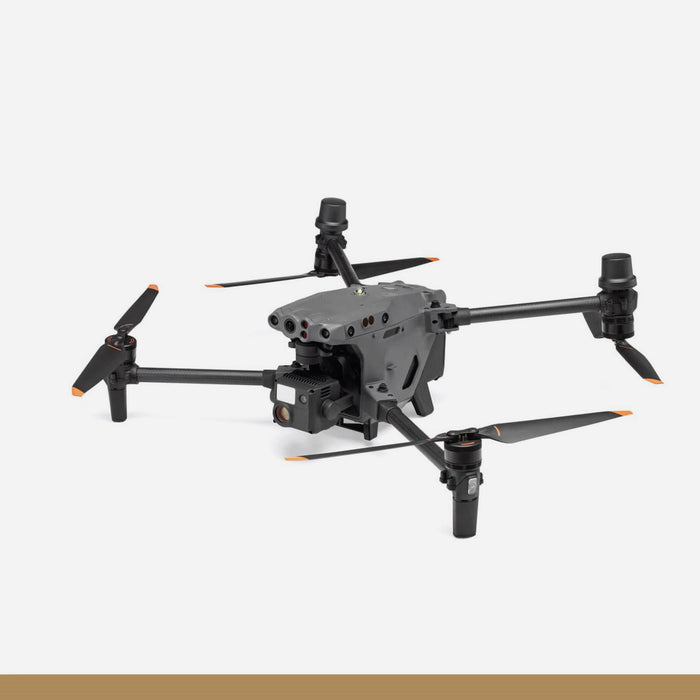

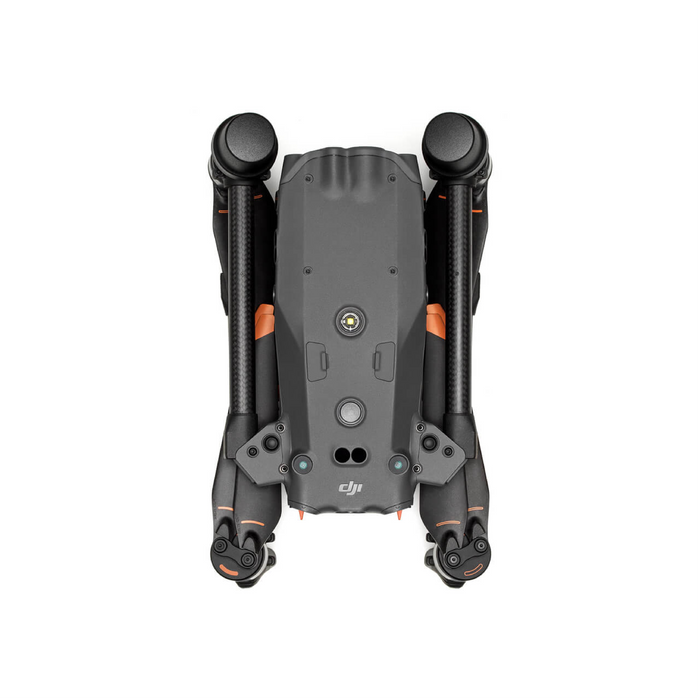

DJI Matrice 30
Designed for commercial and first responder use in harsh conditions, the Matrice 30 Enterprise Drone from DJI can withstand water, dirt, dust, wind, and extreme temperatures from -4° up to 122°F. Combine that with built-in redundancies and backup systems for flight control and signal transmission, and the Matrice 30 is a drone you can count on for important projects and missions. During these flights, you have access to wide-angle and zoom cameras that cover a wide variety of video and still image recording tasks. Plus, a laser rangefinder to pinpoint targets from long range.
Key Features:
● Wide-Angle & Zoom Cameras
● FPV Camera & Laser Rangefinder
● Up to 4K30 Video Resolution
● 5-16x Optical | Up to 200x Hybrid Zoom
● Water, Dust, Dirt & Cold/Heat Resistant
● 6-Sided Obstacle Avoidance
● Up to 9.3-Mile Transmission Range
● RC Plus Remote Controller Included
● Up to 52 mph Maximum Speed
● Up to 4.4 Miles Maximum Elevation
Product Specifications:
Performance | |
Maximum Horizontal Speed | 51.4 mph / 23 m/s |
Maximum Ascent Speed | 13.4 mph / 6 m/s |
Maximum Descent Speed | 11.2 mph / 5 m/s |
Maximum Wind Resistance | 33.6 mph / 15 m/s |
Flight Ceiling | 4.3 Miles / 7000 m |
Maximum Flight Time | 41 Minutes |
Maximum Hover Time | 36 Minutes |
Maximum Tilt Angle | 35° |
Hovering Accuracy | Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±1.0' / 0.3 m GNSS Vertical: ±1.6' / 0.5 m Horizontal: ±4.9' / 1.5 m RTK Vertical: ±0.3' / 0.1 m Horizontal: ±0.3' / 0.1 m |
Maximum Angular Velocity | 150°/s (Pitch) 100°/s (Yaw) |
Rotor Configuration | 4 |
Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-III) [128 GB Maximum] |
Operating Temperature | -4 to 122°F / -20 to 50°C |
Camera | |
Image Sensor | 1/2"-Type CMOS |
Sensor Resolution | Effective: 48 Megapixel (8000 x 6000) |
Focal Length | 21 to 75mm / 113 to 405mm (35mm Equivalent) |
Maximum Aperture | f/2.8 to 4.2 |
Minimum Focus Distance | 16.4' / 5 m |
ISO Sensitivity Range | 100 to 25,600 |
Shutter Speed | Electronic Shutter 1/8000 to 1/2 Seconds in Auto Mode 1/8000 to 8 Seconds in Manual Mode |
Internal Recording Modes | 3840 x 2160 |
Broadcast Resolution | No |
Still Image Support | JPEG (8000 x 6000) (4000 x 3000) (1280 x 1024) (640 x 512) |
Gimbal | |
Rotation Range | Controllable Range Yaw (Pan): 90° Pitch (Tilt): 165° (-120 to 45°) Mechanical Range Yaw (Pan): 105° Pitch (Tilt): 195° (-135 to 60°) Roll: 45° |
Stabilization Accuracy | ±0.01° |
Vision/Sensing System | |
Vision System | Downward / Upward / Forward / Backward / Left / Right |
Sensing System Capabilities | Forward Detection Range: 2.0 to 124.7' / 0.6 to 38 m Field of View: 65° (Horizontal) / 50° (Vertical) Upward Detection Range: 1.6 to 108.3' / 0.5 to 33 m Field of View: 65° (Horizontal) / 50° (Vertical) Downward Detection Range: 1.6 to 108.3' / 0.5 to 33 m Field of View: 65° (Horizontal) / 50° (Vertical) Backward Detection Range: 1.6 to 108.3' / 0.5 to 33 m Field of View: 65° (Horizontal) / 50° (Vertical) Lateral Detection Range: 1.6 to 108.3' / 0.5 to 33 m Field of View: 65° (Horizontal) / 50° (Vertical) |
Required Object Reflectivity | >15% |
Remote Controller / Transmitter | |
Control Method | Included Transmitter |
Operating Frequency | 2.4 GHz (2.400 to 2.4835) 5.8 GHz (5.725 to 5.850) |
Maximum Operating Distance | 9.3 Miles / 15 km |
Transmitter Power | 2.4/5.8 G: 33 dBm |
Battery Type | 1x Built-In |
Battery Chemistry | Lithium-Ion |
Battery Capacity | 6500 mAh |
Wi-Fi | No |
Bluetooth | No |
Mobile App Compatible | No |
Built-In Display Size / Type | 7.02" LCD |
Display Resolution | 1920 x 1200 |
Display Brightness | 1200 nits / cd/m2 |
Operating Temperature | -4 to 122°F / -20 to 50°C |
General | |
GNSS Support | GPS, GLONASS, BeiDou, Galileo |
Diagonal Size | 2.2' / 668 mm |
Overall Dimensions | 23.0 x 8.5 x 18.5" / 585.0 x 215.0 x 470.0 mm (Unfolded) 8.5 x 7.7 x 14.4" / 215.0 x 195.0 x 365.0 mm (Folded) |
Weight | 8.8 lb / 3998 g Maximum for Takeoff |
