T50 Atomized Sprinkler Package
Got questions how Aero can help your business propel to greater heights? Explore options and send your inquiry today.
Inquire Now
DJI AGRAS T50's Dual Atomizing Spraying System provides an ultra-large flow rate of up to 16 L/min (2-sprinkler spraying). It produces uniform and fine spray droplets, and does not leak. DJI AGRAS T50 can be equipped with an additional pair of centrifugal sprinklers, increasing flow rate to 24 L/min (4-sprinkler spraying) for operations that require high application volume. When flying manually, use Reverse Directional Spray with four sprinklers to simplify operations without having to make turns.
Magnetic Drive Impeller Pump
Dual pump flow rate of up to 24 L/min. This is a 100% increase compared with the previous generation, to meet demands of fields, orchards, and high-temperature environments.

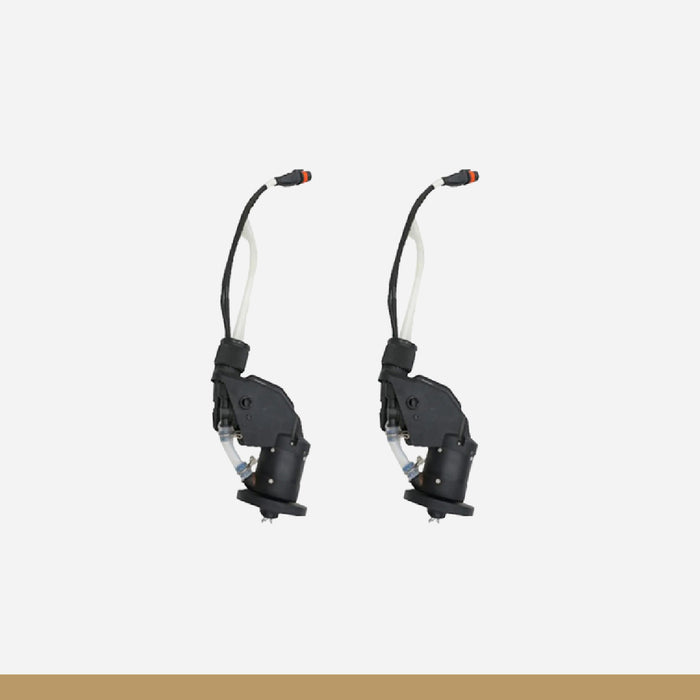

Dual Atomizing Centrifugal Sprinklers
Droplet size can be adjusted between 50-500 μm, depending on the chemicals used.
Brand-New Solenoid Valves
Precision starting and stopping eliminates leaking.
Dual Atomizing Spraying System - Spray Tank
Material
-
Plastic (HDPE)
Volume
-
40 L
Operating Payload
-
40 kg
Quantity
-
1
Dual Atomizing Spraying System - Sprinklers
Model
-
LX8060SZ
Quantity
-
2
Nozzle Distance
-
1570 mm(Rear Nozzles)
Droplet Size
-
50-500 μm
Effective Spray Width
-
4-11 m (at a height of 3 m above the crops)
Dual Atomizing Spraying System - Delivery Pumps
Type
-
Impreller pump (magnetic drive)
Quantity
-
2
Single Pump Flow Rate
-
0-12 L/min
Max Flow Rate
-
16 L/min (2 sprinklers); 24 L/min (4 sprinklers)
