Skydio Payload - VT300 - Z

Name: Skydio Payload - VT300 - Z
Brand: Skydio
Availability: InStock

Product variants

Got questions how Aero can help your business propel to greater heights? Explore options and send your inquiry today. Inquire Now

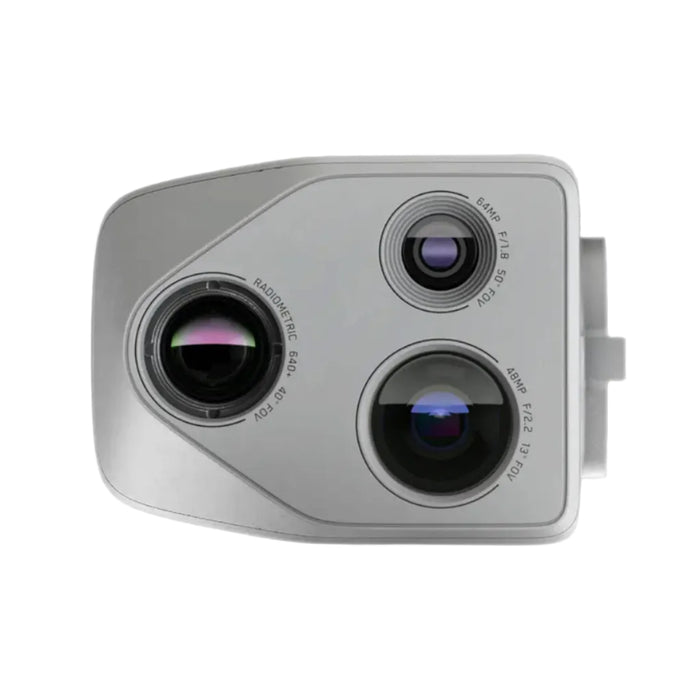

The Skydio Payload – VT300-Z is a powerful multi-sensor payload designed to deliver advanced aerial intelligence for inspection, public safety, and industrial operations. It combines high-resolution visual cameras with thermal imaging to capture critical data in challenging environments and low-visibility conditions. With stabilized gimbal control and precise imaging capabilities, the VT300-Z enables operators to quickly identify details, monitor infrastructure, and improve situational awareness during missions. Built for seamless integration with Skydio platforms, it helps teams work safer, faster, and with greater confidence.

Technical Specifications:

Specification	Details
VT300-Z Sensor Package
Angular Vibration Range	+/-0.01 Degree
User Controllable Range	+/-90 Degree pitch
Mechanical Range	+/-140 Degree pitch, +/-90 Degree yaw, +75 Degree to -230 Degree roll
Telephoto Camera
Sensor	Sony 1/2" 48MP CMOS
Diagonal Field of View	13 Degree
Focal Length	35mm (190mm equivalent)
Aperture	f/2.2
Focus	Hybrid PDAF, 5 m to Infinite
Exposure Compensation	+/-3
Electronic Shutter Speed	1/30 to 1/8000
ISO Range	100 to 16000
Max Video Resolution	3840 x 2880
Max Photo Size	8000 x 6000
Narrow Camera
Sensor	Sony 1/1.7" 64MP CMOS
Diagonal Field of View	50 Degree
Focal Length	10mm (46mm equivalent)
Aperture	f/1.8
Focus	Hybrid PDAF, 1 m to Infinite
Exposure Compensation	+/-3
Electronic Shutter Speed	1/30 to 1/8000
ISO Range	100 to 16000
Max Video Resolution	3840 x 2880
Max Photo Size	9248 x 6944
Thermal Camera
Thermal Imager	Flir Boson+ Uncooled VOx Microbolometer
Diagonal Field of View	41 Degree
Focal Length	13.6mm (60mm equivalent)
Aperture	f/1.0
Focus	5m to Infinite
Thermal Sensitivity	<30mK NEDT
Infrared Temp. Measurement Accuracy	Larger of +/- 5 Degree C or 5%
Image Processing	Adreno 650 GPU accelerated ISP pipeline
Max Video Resolution	640 x 512
Photo Size	640 x 512
Photo Format	JPEG, RJPEG
Pixel Pitch	12 um
Temperature Measurement Method	Spot Meter, Area Measurement
Temperature Measurement Range	-40 Degree to 302 Degree F (-40 Degree to 150 Degree C)-40 Degree to 662 Degree F (-40 Degree to 350 Degree C low gain)
Palette	White hot, black hot, ironbow, rainbow
