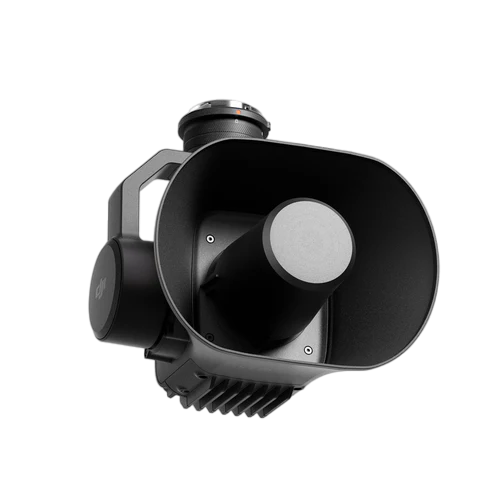

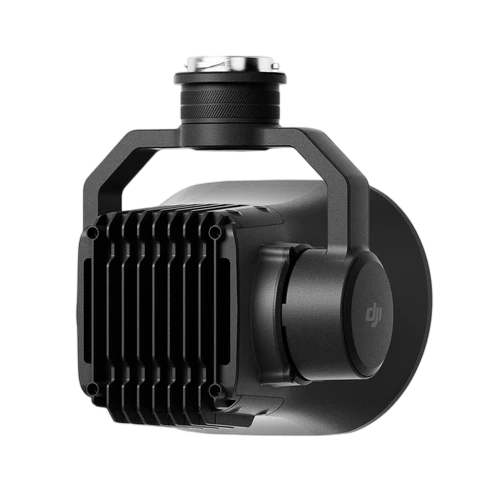

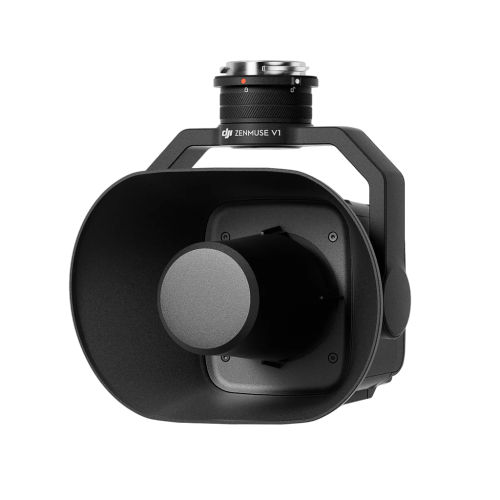

DJI Zenmuse V1

Name: DJI Zenmuse V1
Brand: DJI Enterprise
Availability: InStock

Product variants

Got questions how Aero can help your business propel to greater heights? Explore options and send your inquiry today. Inquire Now

The Zenmuse V1 is a high-performance aerial speaker payload designed for public safety, emergency response, and mission-critical communication. Engineered for seamless integration with compatible DJI enterprise aircraft, it delivers powerful long-range audio broadcasting with intelligent volume adjustment, directional recording, and synchronized gimbal control.

Specifications:

Category	Specification
Product Name	Zenmuse V1
Weight	690±10 g
Dimensions	134×119×140 mm (L×W×H)
Rated Power	30 W
Supported Aircraft	Matrice 400 Matrice 350 RTK Matrice 300 RTK (requires DJI RC Plus)
Shell Temperature	<50° C (122° F, plastic shell) Measured in a laboratory environment with the speaker installed on the aircraft at an ambient temperature of 25° C (77° F).
Ingress Protection Rating	IP54 Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
Environment – Operating Temperature	-20° to 50° C (-4° to 122° F)
Environment – Storage Temperature	-20° to 60° C (-4° to 140° F)
Gimbal – Stabilization System	Single-axis (tilt)
Gimbal – Angular Vibration Range	Hover: ±0.01° Flight: ±0.02°
Mounting	Detachable DJI SKYPORT
Mechanical Range	Tilt: -125° to +25° Structural limit, not controllable range.
Controllable Range – Matrice 400	Single or Dual Downward Gimbal Connector: -120° to -5° Third Gimbal Connector on the Underside: -60° to 0°
Controllable Range – Matrice 300 RTK / Matrice 350 RTK	Single or Dual Downward Gimbal Connector: -120° to -5° Single Upward Gimbal Connector: -5° to +120°
Operation Mode	Follow / Free / Re-center
Speaker – Impedance	4 Ω
Speaker – Nominal Power	25 W
Effective Broadcast Distance	700 m (Matrice 400) 500 m (Matrice 350 RTK/Matrice 300 RTK) Measured in a laboratory environment at 25° (77° F). Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
Max Sound Pressure Level	129 dB @ 1 m (Matrice 400) 127 dB @ 1 m (Matrice 350 RTK/Matrice 300 RTK) Measured in a laboratory environment at 25° (77° F). Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
Effective Bandwidth	800 Hz to 8 kHz
Basic Features – Record & Broadcast	Record & broadcast Real-time broadcasting (Matrice 400 only)
Basic Features – Text-to-Speech	Text-to-speech and storage Matrice 400: Chinese, English, Spanish, Korean, Japanese, and French. Matrice 350 RTK/Matrice 300 RTK: Chinese and English.
Audio File Playback	Supports importing local files in MP3, AAC, and WAV formats. Supports simultaneous file transfer and playback when paired with Matrice 400.
Playback Control	Start / Stop recording / Loop playback / Volume adjustment
Remote Controller Button	Can set one button to press once to start recording, and press again to stop and play the recording.
Gimbal Synchronization	Supports synchronized control with other gimbal-equipped payloads
Special Features – Intelligent Volume Adjustment	When paired with Matrice 400, Zenmuse V1 intelligently adjusts the volume of live recordings and audio files through automatic gain control.
Special Features – Directional Audio Recording	The remote controller supports directional audio pickup and environmental noise reduction
Payload Protection	Speaker temperature protection, overcurrent protection, and power protection to prevent damage.
Directional Broadcasting	The DJI Pilot 2 app can use AR projection to visually indicate the orientation of the speaker.
