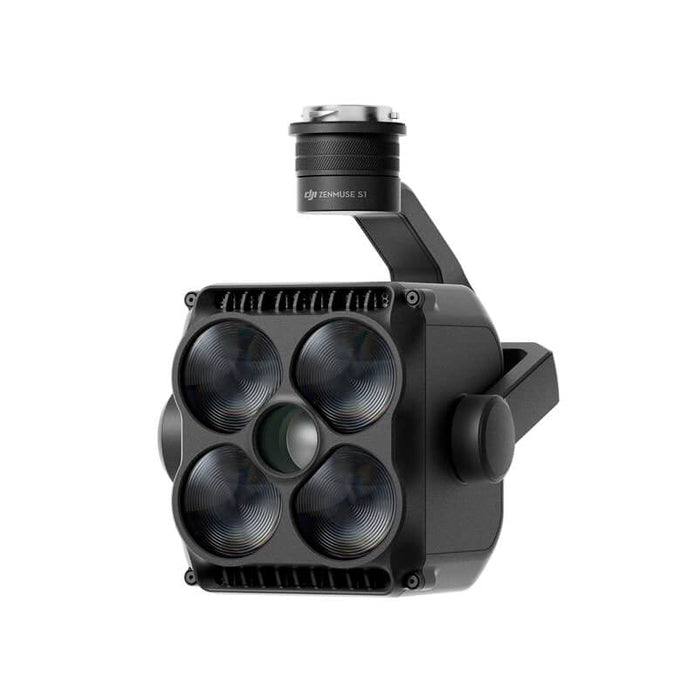

DJI Zenmuse S1

Name: DJI Zenmuse S1
Brand: DJI Enterprise
Availability: InStock

The Zenmuse S1 is a high-performance aerial illumination system designed for critical night-time operations, including search and rescue, emergency response, and industrial inspections.

Product variants

Got questions how Aero can help your business propel to greater heights? Explore options and send your inquiry today. Inquire Now

The Zenmuse S1 is a high-performance aerial illumination system designed for critical night-time operations, including search and rescue, emergency response, and industrial inspections. Engineering a powerful synergy between high-intensity LED and LEP light sources, it delivers a maximum central illuminance of up to 40 lux at a 100-meter distance and an effective illumination range reaching 500 meters.

Specifications:

Category	Parameter	Details
General	Product Name	Zenmuse S1
	Weight	760±10 g
	Dimensions	125 × 152 × 171 mm (L×W×H)
	Rated Power	120 W (Matrice 400); 68 W (Matrice 300 RTK/350 RTK)

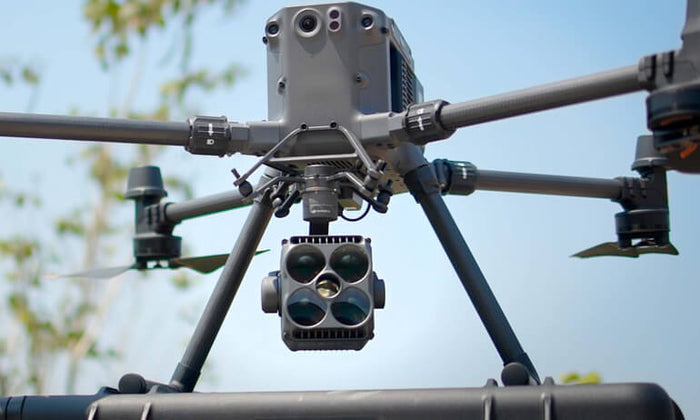

	Supported Aircraft	Matrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus)
	Eye Safety Class	IEC 62471: Risk Group 1
	Shell Temperature	<50° C (122° F, plastic shell)
	Ingress Protection	IP54 (under controlled laboratory conditions)
Environment	Operating Temp	-20° to 40° C (-4° to 104° F)
	Storage Temp	-20° to 60° C (-4° to 140° F)
Gimbal	Stabilization	3-axis (tilt, roll, pan)
	Angular Vibration	Hover: ±0.01∘; Flight: ±0.02∘
	Mounting	Detachable DJI SKYPORT
	Mechanical Range	Tilt: -129° to +73°; Roll: ±55.8∘; Pan: ±327∘
	Controllable Range	Tilt: -120° to +60°; Pan: ±320∘
	Operation Mode	Follow / Free / Re-center
Illuminance	Max Central Lux	40 lux @ 100 m (M400); 35 lux @ 100 m (M300/M350 RTK)
	Low Beam Lux	20 lux @ 100 m (M400); 13 lux @ 100 m (M300/M350 RTK)
	High Beam Lux	30 lux @ 100 m (High Beam mode)
	Illumination Angle	15 ±1∘ (Low/Both On); 4 ±0.5∘ (High Beam)
	Color Temp	6500K (Low Beam); 7500K (High Beam)
	Dimming Mode	Analog dimming
	Effective Distance	500 m (Both On mode)
Features	Basic Lighting	On/off, brightness adjustment, 5 Hz strobe
	Lighting Modes	Low Beam mode, High Beam mode, Both On mode
	RC Customization	Buttons for on/off, brightness, or mode changes
	Sync Control	Supports synchronized control with other gimbal payloads
Specialized	Eye Protection	Auto-limits brightness to 40% when not in flight
	Payload Safety	LED/LEP temperature, overcurrent, and power protection
	Dual Control	Simultaneous control for two S1 units on Matrice 400
	Beam Alignment	Auto-aligns beam with H30 Series camera view (M400)
