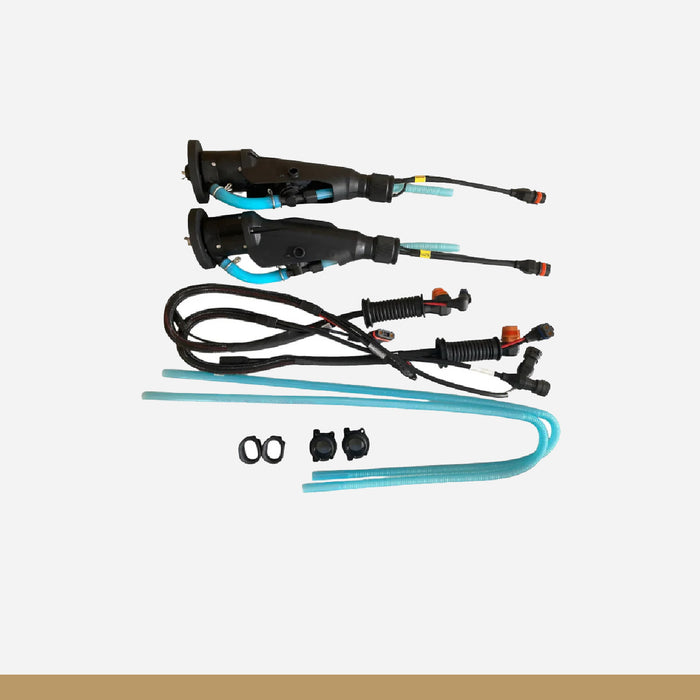

T25 Dual Atomizing Spraying System - Sprinklers

High Rate, Atomized Spray, Leak Free

DJI AGRAS T25's Dual Atomizing Spraying System provides an ultra-large flow rate of up to 16 L/min (2-sprinkler spraying). It produces uniform and fine spray droplets, and does not leak. DJI AGRAS T25 can be equipped with an additional pair of centrifugal sprinklers, increasing flow rate to 24 L/min (4-sprinkler spraying) for operations that require high application volume, increasing spraying scope, operation efficiency, and leaf coverage.

Got questions how Aero can help your business propel to greater heights? Explore options and send your inquiry today. Inquire Now

Spraying System

High Rate, Atomized Spray, Leak Free

DJI AGRAS T25's Dual Atomizing Spraying System provides an ultra-large flow rate of up to 16 L/min (2-sprinkler spraying). It produces uniform and fine spray droplets, and does not leak. DJI AGRAS T25 can be equipped with an additional pair of centrifugal sprinklers, increasing flow rate to 24 L/min (4-sprinkler spraying) for operations that require high application volume, increasing spraying scope, operation efficiency, and leaf coverage.

Magnetic Drive Impeller Pump
Dual pump flow rate of up to 24 L/min. This is a 100% increase compared with the previous generation, to meet demands of fields, orchards, and high-temperature environments.

Dual Atomizing Centrifugal Sprinklers
Droplet size can be adjusted between 50-500 μm, depending on the chemicals used.

Brand-New Solenoid Valves
Precision starting and stopping eliminates leaking.

Dual Atomizing Spraying System - Spray Tank

Material

  • Plastic (HDPE)

Volume

  • 20 L

Operating Payload

  • 20 kg[1]

Quantity

  • 1

Dual Atomizing Spraying System - Sprinklers

Model

  • LX8060SZ

Quantity

  • 2

Nozzle Distance

  • 1368 mm(Rear Nozzles)

Droplet Size

  • 50-500 μm

Effective Spray Width

  • 4-7 m (at a height of 3 m above the crops)

Dual Atomizing Spraying System - Delivery Pumps

Type

  • Impeller pump (magnetic drive)

Quantity

  • 2

Single Pump Flow Rate

  • 0-12 L/min

Max Flow Rate

  • 16 L/min (2 sprinklers)
    24 L/min (4 sprinklers)
