DJI Manifold 3

Name: DJI Manifold 3
Brand: DJI Enterprise
Availability: InStock

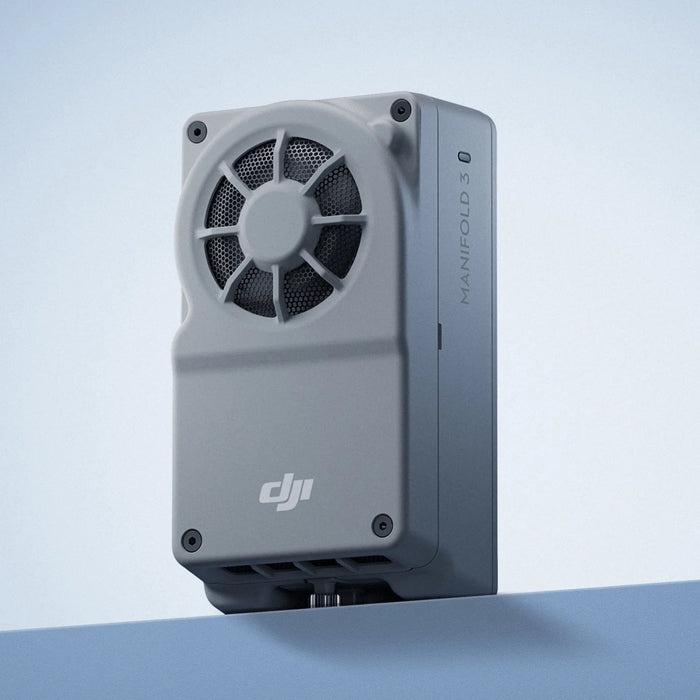

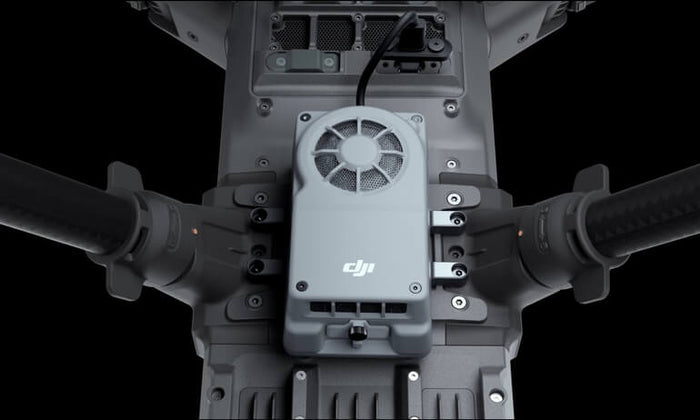

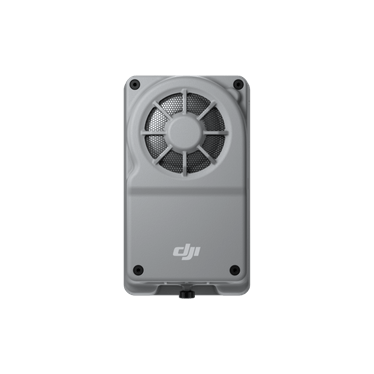

The Manifold 3 is a high-performance onboard computing module built to empower advanced AI applications and edge processing for DJI enterprise drones. Designed for seamless integration with compatible Matrice platforms, it delivers up to 100 TOPS of computing power, enabling real-time data processing, intelligent recognition, and autonomous mission execution.

Product variants

Got questions how Aero can help your business propel to greater heights? Explore options and send your inquiry today. Inquire Now

Compact yet powerful, the Manifold 3 features LPDDR5 memory, high-speed SSD storage, USB 3.2 connectivity, and robust environmental protection (IP55 rating). It is engineered for industrial deployments such as inspection, mapping, surveillance, and smart city operations.

Specifications:

Category	Specification
Product Name	Manifold 3
Weight	120 ± 5 g
Dimensions (L×W×H)	98 × 57 × 36 mm
Rated Power	33 W
Supported Models	DJI Matrice 400 DJI Matrice 4 Series DJI Matrice 4D Series
Memory	16GB LPDDR5
Storage	256GB SSD
Computing Power	Up to 100 TOPS*
E-Port Interface	Supports DJI Matrice 400 E-Port V2 interface
USB-C Interface	USB 3.2 Gen 1 (Up to 5 Gbps transfer rate)
Operating Temperature	-20° to 50° C (-4° to 122° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Ingress Protection Rating	IP55**
E-Port Power Supply	Matrice 400 E-Port V2: 24V Input
USB Power Delivery (PD)	Supports power input via USB-C (PD protocol compatible adapter required)
